Rack Mounting

Linear Regulated Power Supplies

AC-DC single output

• Shipped Within 9 Days
• All Models U.L. Recognized
• Five Year Warranty

DRAWING

(All dimensions in inches.)



Case  |       |         |  Approx.
Size  |  H    |   L     |  Weight
------|-------|---------|-----------
3P11    3-1/2   10-7/8     22 lb.
------------------------------------
3P17    3-1/2   16-13/16   38 lb.
------------------------------------
5P12    5-1/4   11-15/16   28 lb.
------------------------------------
5P17    5-1/4   16-13/16   53 lb.
------------------------------------

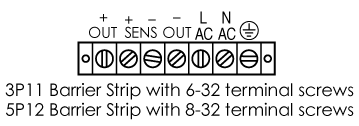

Rear panel connections for case sizes 3P11 and 5P12:



Rear panel connections for case sizes 3P17 and 5P17:
