What's New?
--2012--

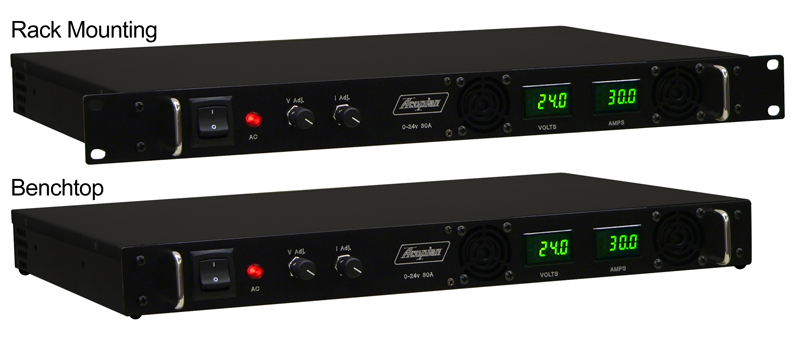

Acopian launches 1U Switching Power Supplies
1U Switching Regulated Switching Power Supplies (to 720 watts)
Click here for the single output models
Click here for the wide adjust output models
--2010--
Acopian's New Gold Box "Infinity" Power Supplies
Linear Regulated (to 150 watts)
Highly configurable, with a seemingly infinite number of options, the new Acopian "Infinity" power supplies are an engineer's/designer's dream.
Click here for the single output models
Click here for the wide adjust output models
--December 2008--
Programmable Power Supplies
|
SWITCHING REGULATED (to 720 watts) Models with single outputs from 3.3V / 70A to 135V / 5.3A Wide adjust models with ranges from 0-5V / 70A to 0-135V / 3.7A Power Factor Correction and Universal Input
|
Standard Features:
- Universal input
- Power Factor Correction
- Constant voltage and constant current modes
- Voltage and current monitor terminals
- Voltage and current programming capabilities
- Short circuit and overload protection
- Thermal protection
- Low Profile
- No minimum load required
- Adjustable down to 0 volts (‘Wide Adjust’ models)
- Can be paralleled for increased current (option P)
- N+1 Redundancy (option N)
- Internal EMI Filter and RFI Shielding
- Pluggable connectors for input and control wiring
- Remote Sensing
- ‘Vout OK’ signal monitor
- ‘Soft start’ operation
--June 2008--
Low Profile (WL7 Series)
|
|||
SWITCHING REGULATED
(to 450 watts)
|
|||
Standard Features:
- Universal input
- Power Factor Correction
- Constant voltage and constant current modes
- Voltage and current monitor terminals
- Voltage and current programming capabilities
- Short circuit and overload protection
- Thermal protection
- Low Profile
- No minimum load required
- Adjustable down to 0 volts (‘Wide Adjust’ models)
- Can be paralleled for increased current (option P)
- N+1 Redundancy (option N)
- Internal EMI Filter and RFI Shielding
- Pluggable connectors for input and control wiring
- Remote Sensing
- ‘Vout OK’ signal monitor
- ‘Soft start’ operation
--May 2007--
Low Profile |
   |
||
SWITCHING REGULATED
(to 720 watts)
|
|||
Standard Features:
- Universal input
- Power Factor Correction
- Constant voltage and constant current modes
- Voltage and current monitor terminals
- Voltage and current programming capabilities
- Short circuit and overload protection
- Thermal protection
- Low Profile
- No minimum load required
- Adjustable down to 0 volts (‘Wide Adjust’ models)
- Can be paralleled for increased current (option P)
- N+1 Redundancy (option N)
- Internal EMI Filter and RFI Shielding
- Pluggable connectors for input and control wiring
- Remote Sensing
- ‘Vout OK’ signal monitor
- ‘Soft start’ operation
--OCTOBER 2006--
Narrow Profile - UL508
Listed Models now Available!
SWITCHING REGULATED
(to 288 Watts)
Power Factor Correction and Universal Input
AC-DC single output
(accepts either AC or DC input)
- Shipped Within 3 Days
- U.L. Recognized
- CE Certified (3.3v to 48v models)
- Five Year Warranty
 |
Small yet providing up to 288 watts of well regulated DC, these supplies can be mounted in spaces where many others won’t fit. A metal case fully encloses all circuitry and provides EMI shielding and an AC input filter attenuates both common and differential mode noise conducted to the line.
- Universal input.
- Accepts AC input (90-265 VAC, 49-61 Hz, single phase).
- Accepts DC input (110-350 Vdc).
- Power Factor Correction.
- High surge current capability.
- ‘Soft start’ operation.
- DIN rail or Wall mountable
--AUGUST 2006--
The New DC Voltage Finder!
Find Acopian AC-DC catalog models in most every DC output voltage, and not
just the common 12v, 24v, 48v, etc.
Click
and find your Acopian power supply
--JUNE 2006--
We now accept American Express.
--MAY 2006--
NEMA 4X ENCLOSED Power Supplies
--MARCH 2006--
Acopian's
online System Builder
Design Your Own Custom Power System Online
| Acopian
Custom Power Systems - shipped within 9 days! Design your custom Acopian Power System on the phone, or with our new System Builder. Acopian can fill your requirements for completely wired multiple-output Power Systems without mechanical layouts, purchase requisitions or searching through a power supply catalog. |
--MARCH 2006--
Narrow Profile
- 3.3v to 48v Models now CE certified!
SWITCHING
REGULATED (to 288 Watts)
Power Factor Correction and Universal Input
AC-DC single output
(accepts either AC or DC input)
- Shipped Within 3 Days
- U.L. Recognized
- CE Certified (3.3v to 48v models)
- Five Year Warranty
| |
Small yet providing up to 288 watts of well regulated DC, these supplies can be mounted in spaces where many others won’t fit. A metal case fully encloses all circuitry and provides EMI shielding and an AC input filter attenuates both common and differential mode noise conducted to the line.
- Universal input.
- Accepts AC input (90-265 VAC, 49-61 Hz, single phase).
- Accepts DC input (110-350 Vdc).
- Power Factor Correction.
- High surge current capability.
- ‘Soft start’ operation.
- DIN rail or Wall mountable
--SEPTEMBER 2005--
 |
--MARCH 2005--

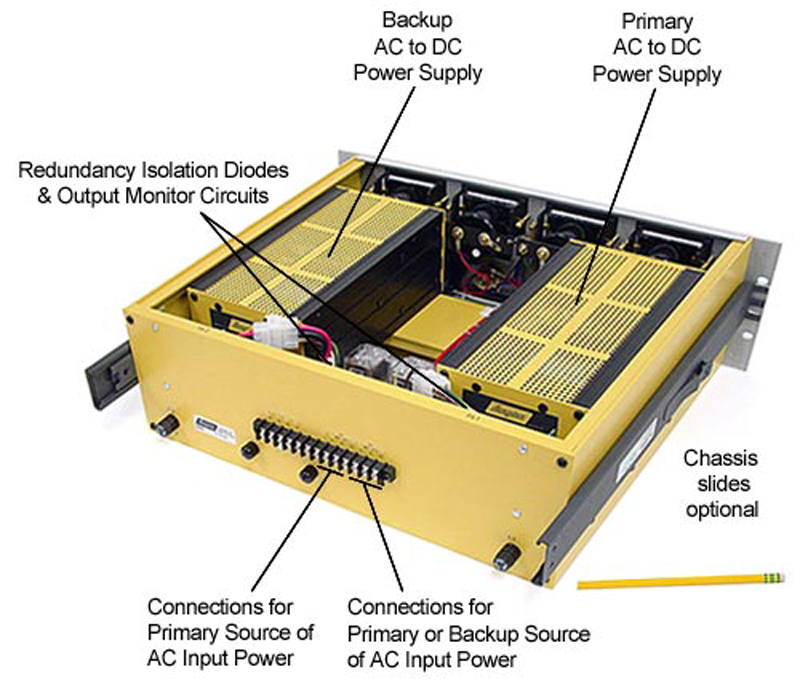

Pluggable
Redundant Power Packages
SWITCHING REGULATED
AC-DC single output
- Shipped Within 9 Days
- Five Year Warranty
 |
The power supplies used in these systems are plugged in from the front, and can be easily changed in just a few seconds.
- Universal input (90-265 VAC, 49-61 Hz, single phase).
- Power Factor Correction.
- High surge current capability.
- ‘Soft start’ operation.
--JANUARY 2005--
Narrow Profile
- 50v to 125v Models Added!
SWITCHING
REGULATED (to 288 Watts)
Power Factor Correction and Universal Input
AC-DC single output
(accepts either AC or DC input)
- U.L. Recognized
- Five Year Warranty
| |
Small yet providing up to 288 watts of well regulated DC, these supplies can be mounted in spaces where many others won’t fit. A metal case fully encloses all circuitry and provides EMI shielding and an AC input filter attenuates both common and differential mode noise conducted to the line.
- Universal input.
- Accepts AC input (90-265 VAC, 49-61 Hz, single phase).
- Accepts DC input (110-350 Vdc).
- Power Factor Correction.
- High surge current capability.
- ‘Soft start’ operation.
- DIN rail or Wall mountable
--DECEMBER 2004--
DC-DC CONVERTERS (to
288 Watts)
Narrow Profile
REGULATED
wide input ranges
single output
- Five Year Warranty
These state-of-the-art DC-DC converters combine excellent regulation and ripple specifications with broad input ranges, and they are available in a large selection of output voltages and current ratings. Accessory mounting kits permit easy installation on a vertical panel, wall or on a DIN rail.
- Outputs from 3.3 Vdc to 125 Vdc
- Inputs from 18 Vdc to 350 Vdc
- Input range ratios of 2:1 and 4:1.
- Output status indicator.
- Overvoltage protection.
- Overload/short circuit protection.
- Input/output isolation exceeds 2828Vdc.
- Remote sensing
- Extruded aluminum case.
--JULY 2004--
NARROW
PROFILE
SWITCHING REGULATED
AC-DC single output
DC-DC (DC input can be used on 230 VAC input models)
- Five Year Warranty
This newest group of Narrow Profile switchers includes convection cooled models less than 7" long that provide outputs up to 75 watts and fan cooled models less than 8" long that provide outputs to 120 watts.
- Internal EMI Filter and Shielding
- Pluggable Input/output Terminal Block
- Excellent Load/line Regulation
- Overcurrent, Overvoltage Protection
- No Minimum Load Required
--MAY 2004--
MODULAR
REDUNDANT SYSTEMS
SWITCHING REGULATED
AC-DC single output
- Shipped Within 9 Days
- Five Year Warranty
These versatile Modular Redundant Systems may be mounted on a DIN rail, wall, chassis or cabinet frame.
--MAY 2004--
Under/Overvoltage Monitors
These modules can be used with any manufacturer’s
power supply between 5 Vdc and 125 Vdc.
Contacts to control an external horn or light, or to signal your PLC are
now available on independent accessories for any power supply. These
modules can be used on power supplies with DC voltages from 5 to 125 Vdc.
SPDT contacts switch if the power supply’s output deviates by:
1.0 volt or more
(for 5 volt outputs)
2.0 volts or more
(for 6 to 48 volt outputs)
3.0 volts or more
(for 49 to 125 volt outputs)
Contact ratings: 120 VAC, 8A / 60 Vdc, 1A. (To comply with SELV requirements, limit switched voltage to 60Vdc/42 VAC.)
--APRIL 2004--
Under/Overvoltage Alarm Contacts option
is now available on...
Gold
Box
LINEAR REGULATED
AC-DC single output
- Shipped Within 3 Days
- Five Year Warranty
OPTIONS
Under/Overvoltage Alarm Contacts: To control a horn or light,
or to signal your PLC. Available on models with nominal outputs of 5 Vdc
to 125 Vdc. SPDT contacts switch if the power supply's output deviates by
1.0 volt or more:
5 volt models.
2.0 volts or more:
6 to 48 volt models.
3.0 volts or more:
50 to 125 volt models.
Contact ratings: 120 VAC, 8A / 60 Vdc, 1A. (To comply with SELV requirements,
limit switched voltage to 60Vdc/42 VAC.)
To order, add suffix "L"to model number and $35.00 to price.
Models with this option are not yet UL Recognized/CE certified.
--FEBRUARY 2004--
Circuit Enclosure Boxes
Versatile enclosures for housing prototypes, adapters, testers, etc.
Video demonstration of Acopian's Circuit Enclosure Boxes
View video in Quicktime format.
View video in Windows Media
format.
View video in RealPlayer format.
You can now package your own circuits in the same rugged casework used for Acopian power supplies. The sides and bottom are an attractive extruded aluminum channel that withstands even severe abuse. The aluminum top, perforated for ventilation, slides into slots in the sides without need for mounting hardware. (There are also slots above the inside bottom of the case for holding an Accessory circuit board.) Moderate-dissipation components may be directly mounted to the case for heat sinking. Connectors, switches, controls and indicators are easily installed on the front and back panels. The boxes are finished in flat gold enamel.
--DECEMBER 2003--
Vertical DIN rail Mounting Kits for all Acopian Narrow Profile Power Supplies
Narrow Profile LINEAR REGULATED, AC-DC
single output
Narrow Profile LINEAR REGULATED, AC-DC
dual tracking outputs
Narrow Profile LINEAR REGULATED, AC-DC wide
adjust output
Narrow Profile SWITCHING REGULATED, AC-DC
or DC-DC single output
--NOVEMBER 2003--
Narrow Profile
- More Models Added!
SWITCHING
REGULATED
AC-DC single output
(accepts either AC or DC input)
- Five Year Warranty
| |
Small yet providing up to 288 watts of well regulated DC, these supplies can be mounted in spaces where many others won’t fit. A metal case fully encloses all circuitry and provides EMI shielding and an AC input filter attenuates both common and differential mode noise conducted to the line.
- Universal input.
- Accepts AC input (90-265 VAC, 49-61 Hz, single phase).
- Accepts DC input (110-350 Vdc).
- Power Factor Correction.
- High surge current capability.
- ‘Soft start’ operation.
- DIN rail or Wall mountable
--SEPTEMBER 2003--
We now accept VISA and MasterCard.
--AUGUST 2003--
Gold Box - Programmable
with a Control Voltage or a Potentiometer
Rack Mounting -
Programmable
with a Control Voltage or a Potentiometer
LINEAR
REGULATED
AC-DC wide adjust output
- Shipped Within 3 Days (Gold Box)
- Shipped Within 9 Days (Rack Mounting)
- Five Year Warranty
 |
 |
The output voltage of these power supplies may be manually controlled either at the power supply or remotely, or it may be programmed with the analog output from a PLC or digital-to analog converter. They have the broad adjustment capability required for analog instrumentation and circuitry, process controls, basic research, and similar applications.
--AUGUST 2003--
Narrow Profile
SWITCHING
REGULATED
AC-DC single output
- Five Year Warranty
| |
Small yet providing up to 288 watts of well regulated DC, these supplies can be mounted in spaces where many others won’t fit. A metal case fully encloses all circuitry and provides EMI shielding and an AC input filter attenuates both common and differential mode noise conducted to the line.
- Universal input.
- Power Factor Correction.
- High surge current capability.
- ‘Soft start’ operation.
--MARCH 2003--
MODULAR REDUNDANT SYSTEMS
LINEAR REGULATED
AC-DC single output
- Shipped Within 9 Days
- Five Year Warranty
These versatile Modular Redundant Systems may be mounted on a DIN rail, wall, chassis or cabinet frame.
