Narrow Profile (3-Day Power Supply)
Linear Regulated Power Supplies

AC-DC dual tracking outputs
(±12v and ±15v)

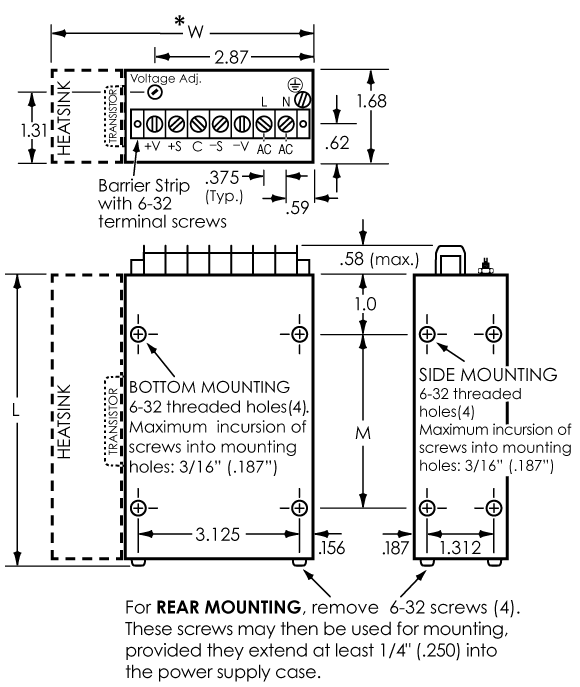

DRAWING

(All dimensions in inches.)

Case  |      |      |      |  Approx.
Size  |  L   |  W*  |  M   |  Weight
------|------|------|------|-------------
TN6T    6.59   3.84   4.00   2 lb. 4 oz.
-----------------------------------------
TN8H    8.47   4.68   5.00   3 lb. 14 oz.
-----------------------------------------

*W dimension includes TRANSISTOR on TN6T case and HEATSINK on TN8H case.
