Plug-In (3-Day Power Supply)
Linear Regulated Power Supplies

AC-DC dual tracking outputs
(±5v, ±12v and ±15v)

DRAWING

(All dimensions in inches.)

Case  |      |      |      |      |      |      |      |  Approx.
Size  |  L   |  W   |  H*  |  M   |  V   |  J   |  Q   |  Weight
------|------|------|------|------|------|------|------|-------------
DA      3.40   3.28   4.67   2.625  2.625  1.00   0.66   2 lb. 8 oz.
---------------------------------------------------------------------
BD      3.40   3.28   5.33   2.625  2.625  1.00   0.66   2 lb. 14 oz.
---------------------------------------------------------------------
DU      3.33   4.15   5.53   2.562  2.750  1.12   0.62   3 lb. 8 oz.
---------------------------------------------------------------------

*H dimension includes HEATSINK on BD and DU case sizes.

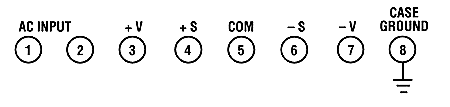

Pin connections:
