Plug-In (3-Day Power Supply)
Linear Regulated Power Supplies

AC-DC single output

OPTIONS

Solder Terminals: All models can be furnished with solder terminals instead of the octal type plug. To order, add suffix "L" to model number and $50.00 to price. Example: Model 12J100 becomes Model 12J100L. To determine dimensions of case with terminals, add suffix "L" to case size code indicated. Example: AS becomes ASL. Drawing

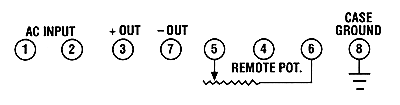

Remote Output Adjustment:All models have a local voltage adjustment. When provision for remote (external) adjustment is also desired, add prefix "E" to model number. Example: Model 12J100 becomes Model E12J100. No increase in price.

Remote Sensing: Provision for remote sensing of the output voltage to compensate for drops in the load lines can be furnished at an additional charge of $10.00 per unit. Add prefix "R" to model number when ordering. "R" power supplies have a local voltage adjustment and provision for remote (external) output adjustment.

230 Volt Input: All models can be alternately furnished for operation on inputs of 210 to 250 VAC, 50-400 Hz. Add suffix "-230" to model number and $25.00 to price. The "-230" option requires two additional days.

Overvoltage Protection: An internal preset overvoltage protector is available. To order, add prefix "V" to the model number, and add $25.00 to the standard price of models with outputs of 1 to 70 volts; $35.00, for 75 to 200 volt outputs.

Moisture/Fungus Proofing: Can be furnished with a moisture and fungus resistant varnish to interior surfaces. To order, add suffix "F" to model number and $25.00 to price. The "moisture/fungus proofing" option requires two additional days.
