Narrow Profile (3-Day Power Supply)
Switching Regulated Power Supplies (to 120 watts)

AC-DC single output
DC-DC (DC input can be used on 230 VAC input models)

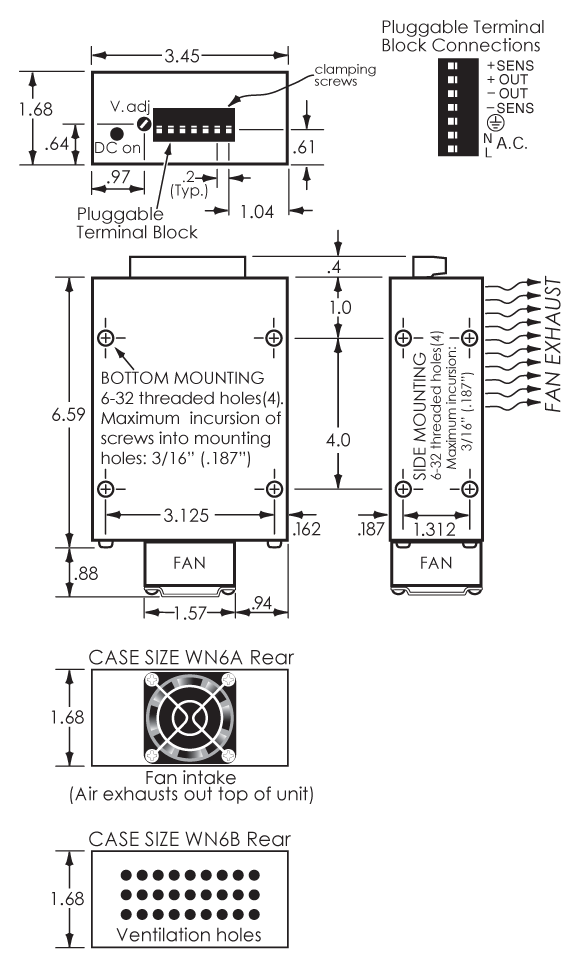

DRAWING

(All dimensions in inches.)

 Case  | Number of fans       Approx.
 Size  | on rear panel        Weight
-------|-----------------------------------
 WN6A           1              1 lb. 6 oz.
-------------------------------------------
 WN6B           0              1 lb. 4 oz.

-------------------------------------------
